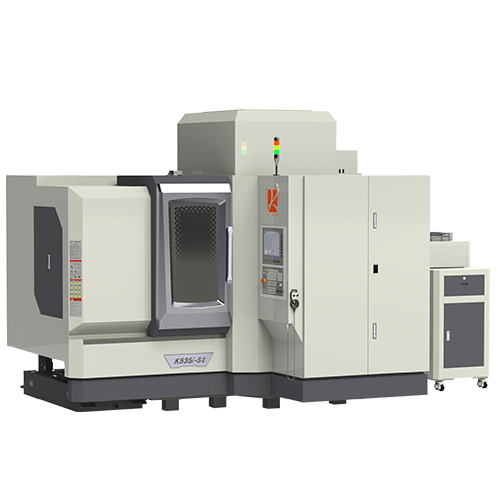

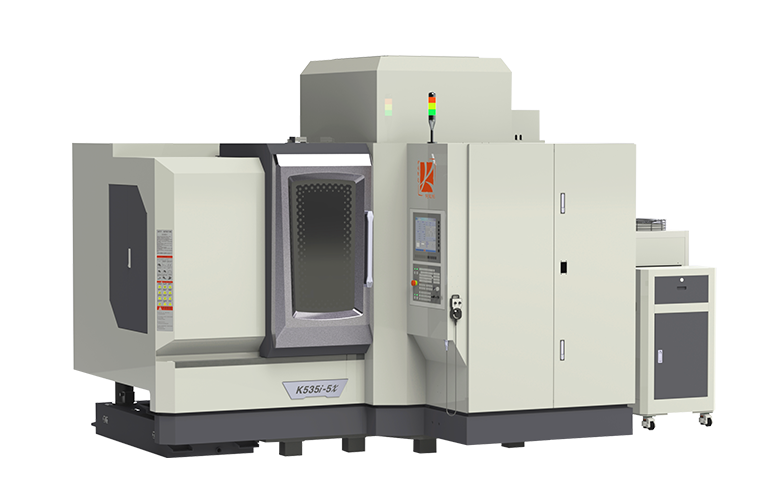

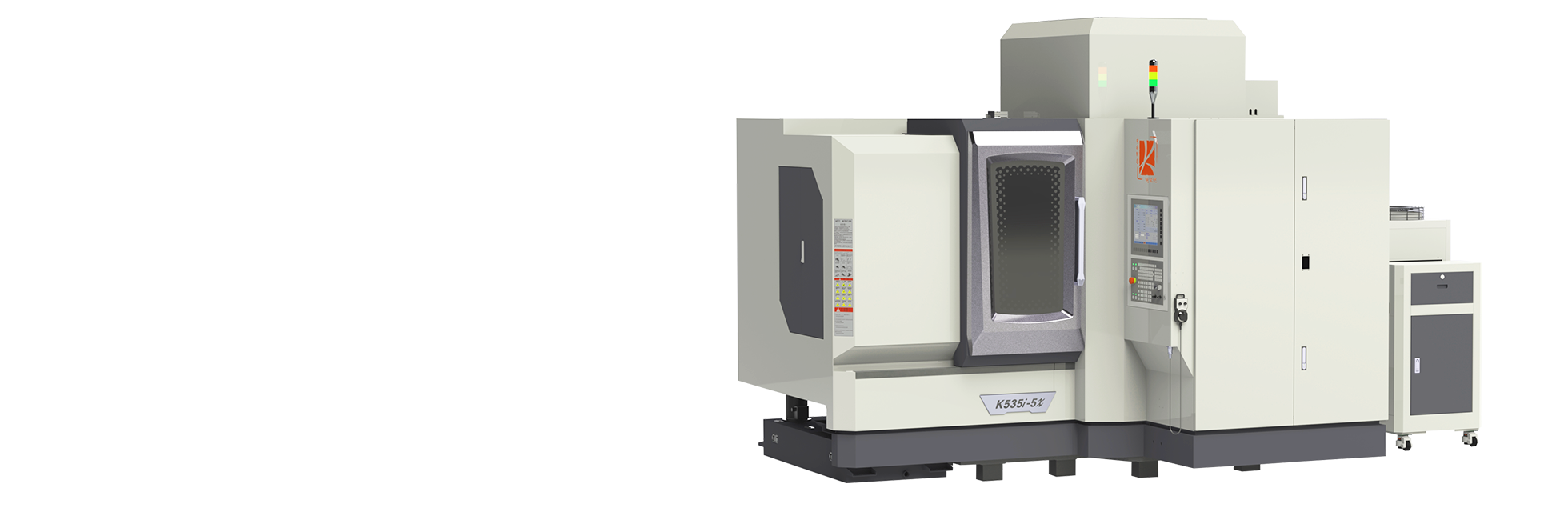

Stroke: 400 x680x300mm
Faux marble bed
Three axis linear motor and grating ruler (Heidenhain)
36000RPM,HSK E50, built-in spindle
Mainly suitable for blade, turbine, complex precision mold, medical parts, aerospace and other five axis processing fields
| project | K535i-5X | |
| Machine part standard specifications | ||
| Range of work | X axis travel | 400mm |
| Y axis travel | 680mm | |
| Z axis travel | 300mm | |
| Spindle nose to table surface | 133-433mm | |
| Turntable | Disk size | Φ350mm |
| Drive method | Motor direct drive | |
| Maximum load-bearing capacity of the table | 100kg (uniform load-bearing) | |
| Maximum speed | A axis; 60RPM C axis; 200RPM | |
| A axis rotation angle | ±110° | |
| C axis rotation angle | ±360° | |
| A/C axis repeat positioning accuracy | ±2" | |
| Spindle | Type | Built-in spindle |
| Rotating speed | 36000RPM | |
| Spindle end (nominal spindle number) | 1/10 taper HSK E50 | |
| Spindle motor | 16KW | |
| Maximum clamping tool diameter of spindle | 20mm | |
| Feed rate | Fast forward speed X/Y/Z | 36/36/36m/min (out of the machine, the three axis is set to 18m/min) |
| Cutting feed rate X/Y/Z | 1-30,000mm/min | |
| Maximum acceleration X/Y/Z | 0.7g/0.4g/0.3g | |
| Tool holder magazine | Tool holder type | HSK E50 |
| Tool number of tool magazine | 32 tools | |
| The maximum diameter of the cutter | Φ75 | |
| Air knife | Φ75 | |
| Maximum tool length (maximum tool diameter) | 240mm | |
| The maximum length of the tool (adjacent to the air knife) | 220mm | |
| Tool selection ways | Randomly nearby | |
| Max. tool weight | 8kg/hand | |
| Tool change time (tool to tool) | 1.55 seconds | |
| Accuracy | Positioning precision | ≤0.005mm |
| Repeating positioning precision | ≤0.003mm | |
| Required power source | Air pressure source | 6.0Kgf/cm² |
| power source | 3x380,25kVA | |
| Machine size | Machine size | 4376 x 2823x 2800mm (accessory box is on the right) |
| Machine weight | 7200kg | |
Workpiece material: aluminum 6063
Machining tool: D8
Spindle speed: 22000RPM
Finishing time: 18s
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R0.5
Spindle speed: 22000RPM
Finishing time: 2h10min
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R2
Spindle speed: 20000RPM
Finishing time: 4h20min
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R2
Spindle speed: 18000RPM
Finishing time: 6h
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R1 / R0.5
Spindle speed: 20000RPM
Finishing time: 6h15min
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R1
Spindle speed: 16000RPM
Finishing time: 30min
Processing equipment: K520i-5X
