Stroke: 700 x500x300mm
Faux marble bed
Three axis linear motor and grating ruler (Heidenhain)
36000RPM,HSK E50, built-in spindle
Mainly suitable for high precision mold, precision parts and so on.

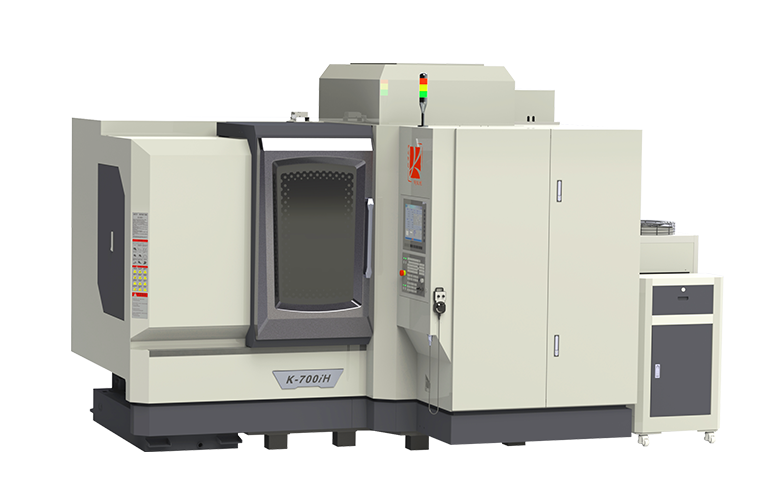

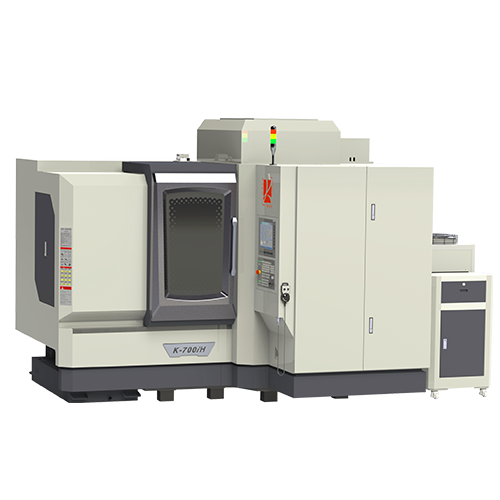

| project | K-700iH | |
| Machine part standard specifications | ||
| Range of work | X axis travel | 700mm |
| Y axis travel | 500mm | |
| Z axis travel | 300mm | |
| Spindle nose to table surface | 210-510mm | |
| Worktable | Table size (X-axis direction, Y-axis direction) | 900 x 500mm |
| Max. table load | 600kg (uniform load-bearing) | |
| Table shape | T slot nominal 10 x interval 100mm x 5 | |
| Spindle | Type | Built-in spindle |
| Spindle speed | 36000RPM | |
| Spindle end (nominal spindle number) | 1/10 taper HSK E50 | |
| Spindle motor | 16KW | |
| Maximum clamping tool diameter of spindle | 20mm | |
| Feed rate | Fast forward speed X/Y/Z | 36/36/36m/min (out of the machine, the three axis is set to 18m/min) |
| Cutting feed rate X/Y/Z | 1-30,000mm/min | |
| Maximum acceleration X/Y/Z | 0.7g/0.4g/0.6g | |
| Tool holder magazine | Tool holder type | HSK E50 |
| Tool number of tool magazine | 32 tools | |
| Cutter diameter | Φ 75 | |
| Air knife | Φ 90 | |
| Maximum tool length (maximum tool diameter) | 240mm | |
| The maximum length of the tool (adjacent to the air knife) | 220mm | |
| Tool selection ways | Randomly nearby | |
| Max. tool weight | 8kg/handle | |
| Tool change time (tool to tool) | 1.55 seconds | |
| Accuracy | Positioning precision | ≤0.005mm |
| Repeating positioning precision | ≤0.003mm | |
| Required power source | Air pressure source | 6Kgf/cm² |
| power source | 3x380,25kVA | |
| Machine size | Machine size | 4376 x 2825 x 2600mm (accessory box is on the right side of the device) |
| Machine weight | 7000kg | |
Workpiece material: S136ESR
Machining tool: R0.5
Spindle speed: 20000RPM
Finishing time: 25h
Workpiece size: 50*50mm
Workpiece material: S136ESR
Processing tool: R1.5
Spindle speed: 20000RPM
Finishing time: 17h
Workpiece size: 60*60*25mm
Workpiece material: S136ESR
Machining tool: CBN-R1
Spindle speed: 30000RPM
Finishing time: 10h12min
Workpiece size: 80*50*30mm
Workpiece material: 2344ESR
Machining tool: CBN-R0.2
Spindle speed: 40000RPM
Finishing time: 17h5min
Workpiece size: 50*50mm
Workpiece material: S136ESR
Machining tool: R0.5
Spindle speed: 50000RPM
Finishing time: 10h30min
Workpiece size: 39*1.1mm
Workpiece material: S136ESR
Processing tool: PCD-R1
Spindle speed: 50000RPM
Finishing time: 7h10min
Workpiece size: 57*55*28mm
