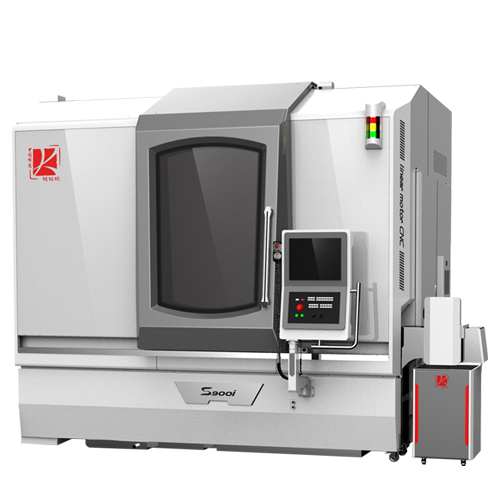

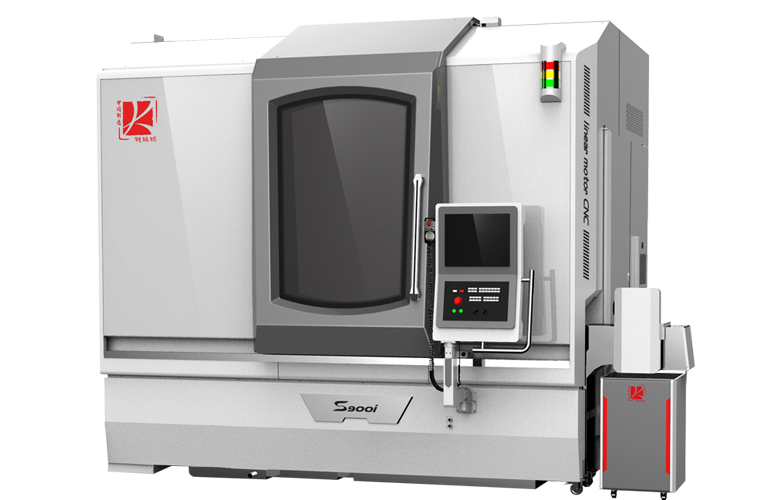

S900i-Guangdong Precise Numerical Control Technology Co.,Ltd.

Equipment highlights

Keruisi's reliability and easy maintenance provide guarantee for the accuracy and productivity of your machine, bringing you a lot of value and rate of return

Stroke: 900x600x400mm
High-strength non-deformable mineral casting (artificial marble) bed
Full bed cooling and cutting fluid cooling system to ensure that temperature changes will not affect processing
The vertical inclined bed reduces the center of gravity and makes the guide rail more uniform, thereby reducing the impact of machining inertia and acceleration on accuracy
Asymmetric structure design, fully considering the dynamic accuracy of processing
Three-axis linear motor + y-axis dual linear motor drive + highly responsive full closed loop, high-speed and high-rigidity oil-steam lubricated spindle (HSK-E50-36000rpm), optional coordinate grinding function, mainly suitable for car lights and high-precision Multi-cavity mold

Specification Parameters

Keruisi has always insisted on manufacturing high-end CNC equipment belonging to China

project		S900i
Machine part standard specifications
Range of work	X axis travel	900mm
	Y axis travel	600mm
	Z axis travel	400mm
	Spindle nose to table surface	174 - 574mm
Worktable	Table size (X-axis direction, Y-axis direction)	1000 x 600mm
	Max. table load	800kg (uniform load-bearing)
	Table shape	T slot Nominal 18 x interval 100mm x 5
Spindle	Type	Built-in spindle
	Spindle speed	36000RPM
	Spindle end (nominal spindle number)	1/10 taper HSK E50
	Spindle motor	16KW
	Maximum clamping tool diameter of spindle	20mm
Feed rate	Fast forward speed X/Y/Z	60/60/60m/min (out of the machine, the three axis is set to 18m/min)
	Cutting feed rate X/Y/Z	1-30,000mm/min
	Maximum acceleration X/Y/Z	0.6g/0.5g/0.6g
Tool holder magazine	Tool holder type	HSK E50
	Tool number of tool magazine	32 tools
	Max. tool diameter	75mm (full knife)
	Neighboring Knife	100mm
	Max. tool length	256mm
	Tool selection ways	Randomly nearby
	Max. tool weight	7kg/hand
	Tool change time (tool to tool)	1.57s
Accuracy	Positioning precision	≤0.003/300 mm
Accuracy	Repeating positioning precision	≤0.002/300 mm
Required power source	Air pressure source	6Kgf/cm²
Required power source	power source	3x380,25kVA
Machine size	Machine size	3620 x 2780 x 3470mm (4184 x 2780 x 3470mm with chain chip conveyor)
Machine size	Machine weight	11700kg
