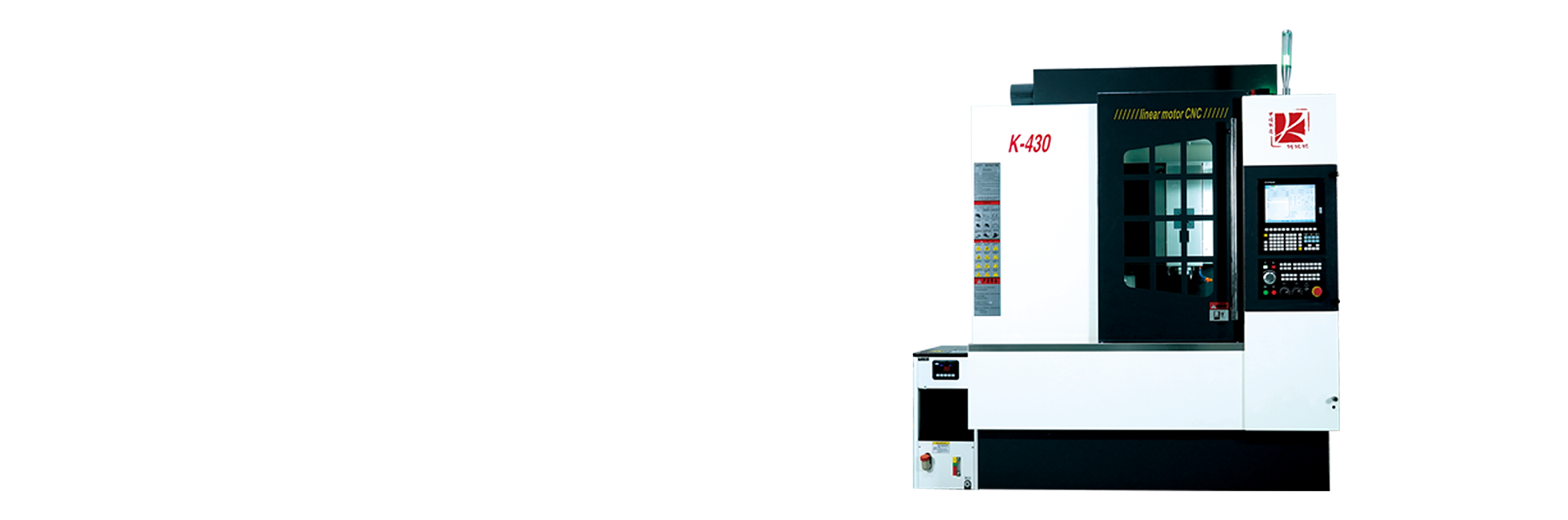

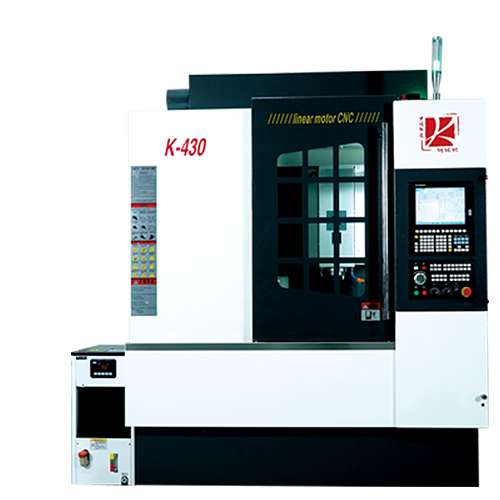

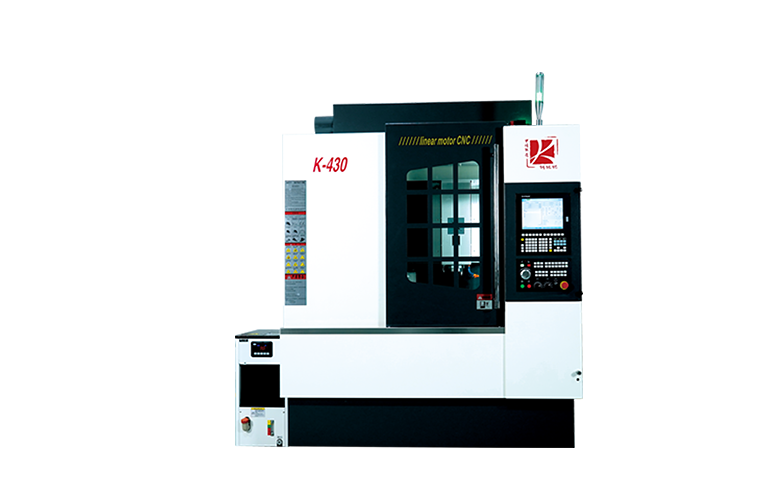

project | K-430 | |
Machine part standard specifications | ||
Range of work | X axis travel | 350mm |
Y axis travel | 400mm | |
Z axis travel | 230mm | |
Distance from spindle end face to turntable end face | 53-283mm | |
Distance from workbench to spindle end face | 265-495mm | |
Worktable | Table size (X-axis direction, Y-axis direction) | 500 x 400mm |
Max. table load | 100kg (uniform load-bearing) | |
Table shape | T slot nominal 10 x interval 100mm x 4 | |
Spindle | Type | Built-in spindle |
Spindle speed | 30000RPM | |
Spindle end (nominal spindle number) | 1/10 taper HSK E40 | |
Spindle motor | 6.0kw | |
Maximum clamping tool diameter of spindle | 16mm | |
Feed rate | Fast forward speed X/Y/Z | 60/60/60m/min |
Cutting feed rate X/Y/Z | 200-30,000mm/min | |
Maximum acceleration | 1.4g | |
Tool holder magazine | Tool holder type | HSK E40 |
Tool number of tool magazine | 20 tools | |
Max. tool diameter | 55mm (full knife) | |
Neighboring Knife | 115mm | |
Max. tool length | 170mm | |
Tool selection ways | Randomly nearby | |
Max. tool weight | 3kg/hand | |
Tool change time (tool to tool) | 1.55 seconds | |
Accuracy | Positioning precision | ≤0.005mm |
Repeating positioning precision | ≤0.003mm | |
C axis positioning accuracy | ±10‘’ | |
Required power source | Air pressure source | 6Kgf/cm² |
power source | 3x380,8kVA | |
Machine size | Machine size | 2510x2130x2510mm |
Machine weight | 4500kg |
Workpiece material: PEI
Processing tool: Φ0.15mm micro-hole drill
Spindle speed: 20000RPM
Finishing time: 1h30min
Workpiece size: 55*38*6mm
Workpiece material: PEEK
Processing tool: Φ0.2mm micro-hole drill
Spindle speed: 26000RPM
Finishing time: 1h30min
Workpiece size: 110*38*15mm
Workpiece material: PEI
Processing tool: Φ0.1mm micro-hole drill
Spindle speed: 26000RPM
Finishing time: 65min
Workpiece size: 38*33*2mm
Workpiece material: aluminum 6063
Processing tool: PCD-R8
Surface roughness: Ra0.21μm
Finishing time: 3min
Workpiece size: 62*38*12mm
Workpiece material: aluminum 6063
Processing tool: PCD-R8
Surface roughness: Ra0.2μm
Finishing time: 9min18s
Workpiece size: 33*18*13mm
Workpiece material: aluminum 6063
Processing tool: PCD-R8
Surface roughness: Ra0.18μm
Finishing time: 4min46s
Workpiece size: 305*215mm
