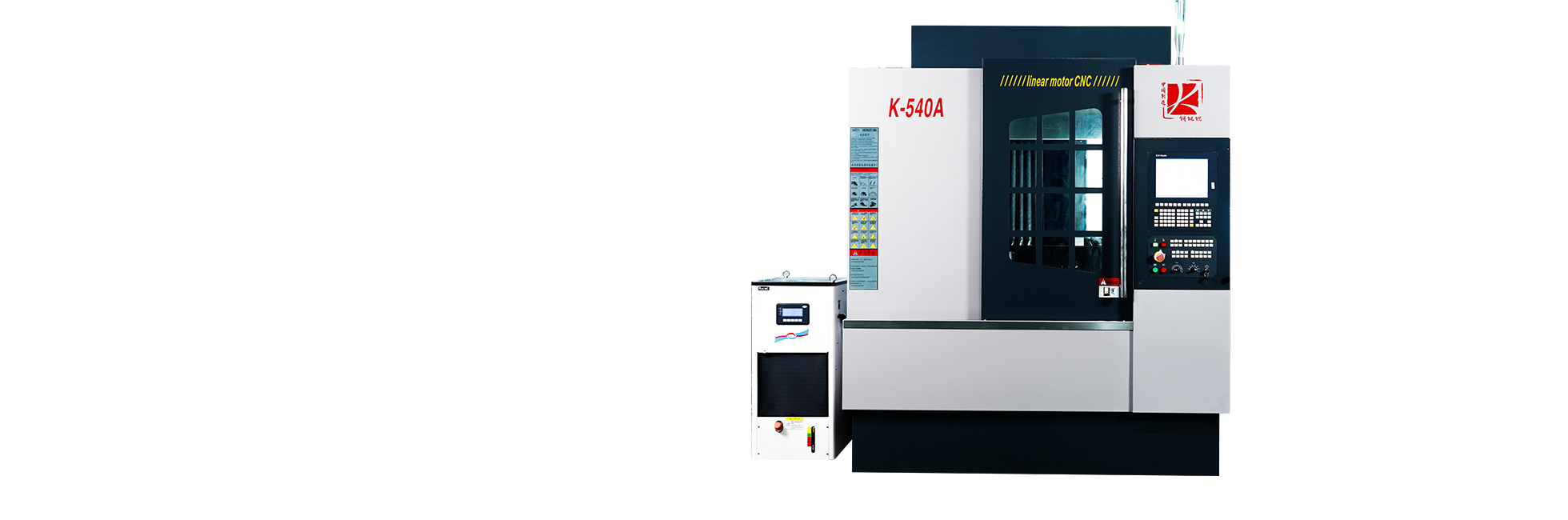

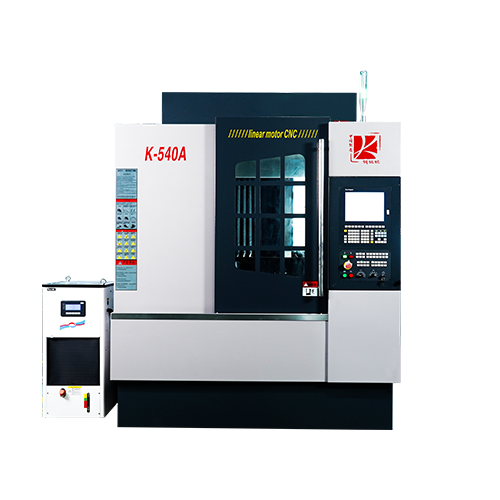

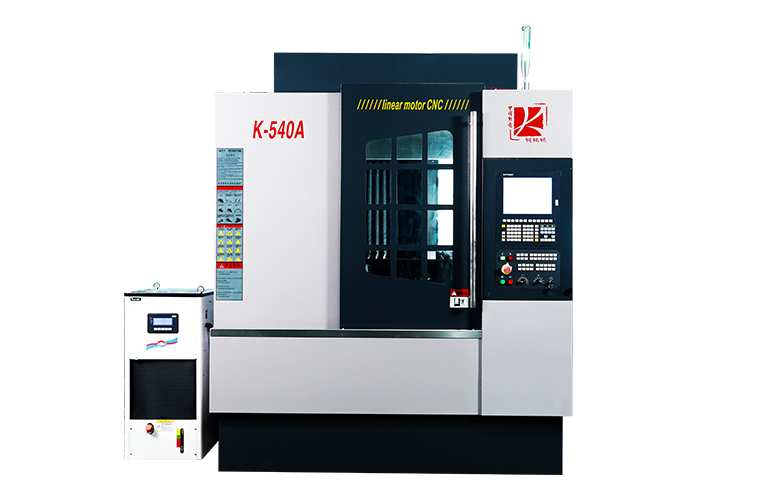

project | K-540A | |
Machine part standard specifications | ||
Range of work | X axis travel | 500mm |
Y axis travel | 400mm | |
Z axis travel | 230mm | |
Spindle nose to table surface | 180-410mm | |
Worktable | Table size (X-axis direction, Y-axis direction) | 500 x 400mm |
Max. table load | 300kg (uniform load-bearing) | |
Table shape | T slot nominal 10 x interval 100mm x 4 | |
Spindle | Type | Built-in spindle |
Spindle speed | 30000RPM | |
Spindle end (nominal spindle number) | 1/10 taper HSK E40 | |
Spindle motor | 7.5kw/11kw | |
Maximum clamping tool diameter of spindle | 20mm | |
Feed rate | Fast forward speed X/Y/Z | 60/60/60m/min (out machine setting is 18m/min) |
Cutting feed rate X/Y/Z | 1-30,000mm/min | |
Maximum acceleration X/Y/Z | 0.4g/0.6g/1.0g | |
Tool holder magazine | Tool holder type | HSK E40 |
Tool number of tool magazine | 20 tools | |
Max. tool diameter | 55mm (full knife) | |
Neighboring Knife | 115mm | |
Max. tool length | 140mm | |
Tool selection ways | Randomly nearby | |
Max. tool weight | 3kg/hand | |
Tool change time (tool to tool) | 1.55 seconds | |
Accuracy | Positioning precision | ≤0.005mm |
Repeating positioning precision | ≤0.003mm | |
Required power source | Air pressure source | 6Kgf/cm² |
power source | 3x380,8kVA | |
Machine size | Machine size | 2600x 2100 x 2510mm |
Machine weight | 4900kg |
Workpiece material: copper
Processing tool: D1/D0.5/R0.3
Spindle speed: 18000RPM
Finishing time: 42min
Workpiece size: 47*47*16mm
Workpiece material: copper
Machining tool: D1R0.1
Spindle speed: 18000RPM
Finishing time: 2h49min
Workpiece size: 45*29*22mm
Workpiece material: copper
Machining tool: R1
Spindle speed: 19000RPM
Finishing time: 1h
Workpiece size: 54*43*18mm
Workpiece material: copper
Processing tool: D1/D0.5/R0.3
Spindle speed: 18000RPM
Finishing time: 2h15min
Workpiece size: 82*47*19mm
Workpiece material: copper
Processing tool: R0.3
Spindle speed: 18000RPM
Finishing time: 48min
Workpiece size: 72*47*9mm
Workpiece material: copper
Machining tool: D0.8R0.05/R1
Spindle speed: 18000RPM
Finishing time: 48min
Workpiece size: 62*38*12mm
