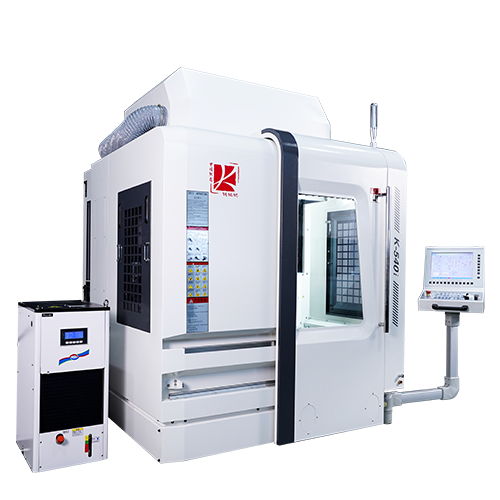

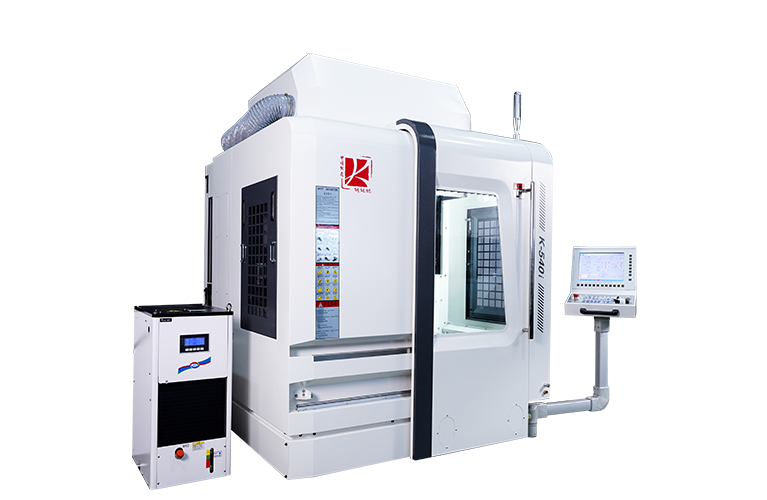

project | K-540i | |
Machine part standard specifications | ||
Range of work | X axis travel | 500mm |
Y axis travel | 400mm | |
Z axis travel | 200mm | |
Spindle nose to table surface | 155-355mm | |
Worktable | Table size (X-axis direction, Y-axis direction) | 500 x 400mm |
Max. table load | 300kg (uniform load-bearing) | |
Table shape | T slot nominal 10 x interval 100mm x 4 | |
Spindle | Type | Built-in spindle |
Spindle speed | 30000RPM | |
Spindle end (nominal spindle number) | 1/10 taper HSK E40 | |
Spindle motor | 11KW | |
Maximum clamping tool diameter of spindle | 16mm | |
Feed rate | Fast forward speed X/Y/Z | 60/60/60m/min (out of the machine, the three axis is set to 18m/min) |
Cutting feed rate X/Y/Z | 1-30,000mm/min | |
Maximum acceleration X/Y/Z | 0.6g/0.7g/1.0g | |
Tool holder magazine | Tool holder type | HSK E40 |
Tool number of tool magazine | 20 tools | |
Max. tool diameter | 55mm (full knife) | |
Neighboring Knife | 115mm | |
Max. tool length | 140mm | |
Tool selection ways | Randomly nearby | |
Max. tool weight | 3kg/handle | |
Tool change time (tool to tool) | 1.55 seconds | |
Accuracy | Positioning precision | ≤0.003mm |
Repeating positioning precision | ≤0.002mm | |
Required power source | Air pressure source | 6Kgf/cm² |
power source | 3x380,10kVA | |
Machine size | Machine size | 3700 x 3290 x 2700mm |
Machine weight | 5500kg |
Workpiece material: copper
Machining tool: D1R0.1
Spindle speed: 19000RPM
Finishing time: 1h
Workpiece size: 50*45*14mm
Workpiece material: S136ESR
Machining tool: R1
Spindle speed: 20000RPM
Finishing time: 6h19min
Workpiece size: 60*60*25mm
Workpiece material: copper
Machining tool: CBN-R0.15
Spindle speed: 16000RPM
Total processing time: 9h6min
Workpiece size: 107*27*13mm
Workpiece material: copper
Processing tool: D0.8R0.05/R0.3
Spindle speed: 18000RPM
Total processing time: 10h26min
Workpiece size: 164*83*16mm
Workpiece material: copper
Machining tool: D1 / R0.1
Spindle speed: 18000RPM
Finishing time: 48min
Workpiece size: 154*73*11mm
Workpiece material: copper
Machining tool: D3R0.2/R0.5
Spindle speed: 18000RPM
Finishing time: 1h17min
Workpiece size: 167*87*17mm
