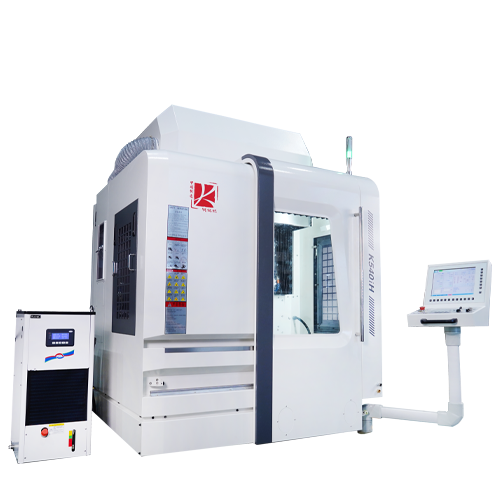

K-540iH-Guangdong Precise Numerical Control Technology Co.,Ltd.

Equipment highlights

Keruisi's reliability and easy maintenance provide guarantee for the accuracy and productivity of your machine, bringing you a lot of value and rate of return

Stroke: 500x400x200mm
Artificial marble bed
Three-axis linear motor and grating ruler (Heidenhain)
42000RPM, HSK E40, built-in spindle (oil-air lubrication)
Mainly suitable for optics, auto parts, precision terminals, LED packaging, aerospace, medical, liquid silicone molds and other fields

Specification Parameters

Keruisi has always insisted on manufacturing high-end CNC equipment belonging to China

project		K-540iH
Machine part standard specifications
Range of work	X axis travel	500mm
	Y axis travel	400mm
	Z axis travel	200mm
	Spindle nose to table surface	155-355mm
Worktable	Table size (X-axis direction, Y-axis direction)	500 x 400mm
	Max. table load	300kg (uniform load-bearing)
	Table shape	T slot nominal 10 x interval 100mm x 4
Spindle	Type	Built-in spindle
	Spindle speed	42000RPM
	Spindle end (nominal spindle number)	1/10 taper HSK E40
	Spindle motor	11KW
	Maximum clamping tool diameter of spindle	16mm
Feed rate	Fast forward speed X/Y/Z	60/60/60m/min (out of the machine, the three axis is set to 18m/min)
	Cutting feed rate X/Y/Z	1-30,000mm/min
	Maximum acceleration X/Y/Z	0.6g/0.7g/1.0g
Tool holder magazine	Tool holder type	HSK E40
	Tool number of tool magazine	20 tools
	Max. tool diameter	55mm (full knife)
	Neighboring Knife	115mm
	Max. tool length	140mm
	Tool selection ways	Randomly nearby
	Max. tool weight	3kg/handle
	Tool change time (tool to tool)	1.55 seconds
Accuracy	Positioning precision	≤0.003mm
Accuracy	Repeating positioning precision	≤0.002mm
Required power source	Air pressure source	6Kgf/cm²
Required power source	power source	3x380,10kVA
Machine size	Machine size	3700 x 3290 x 2700mm
Machine size	Machine weight	5500kg

Processing sample display

Equipment applications involve 3C industry, mold processing, optics, auto parts, LED packaging, aerospace, medical, liquid silicone and other fields

Learn More

K-540iH

K-540i High-speed and high-precision vertical machining center

Equipment highlights

Specification Parameters

Processing sample display

Equipment applications involve 3C industry, mold processing, optics, auto parts, LED packaging, aerospace, medical, liquid silicone and other fields

High-gloss inserts

Shell model

Car logo inserts

Triangle flower test piece

Lens insert

Optical insert
