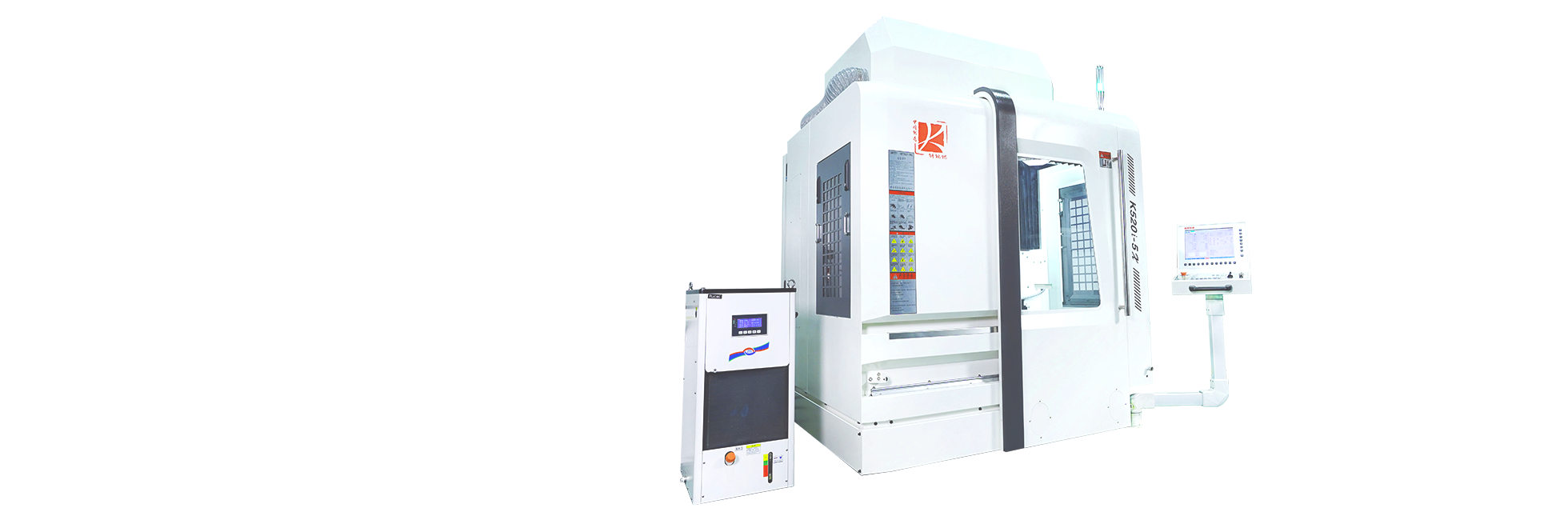

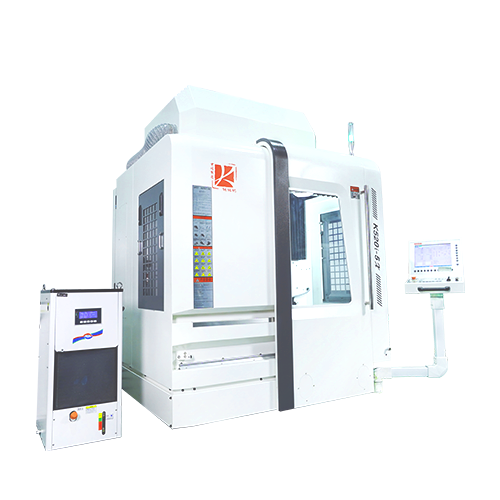

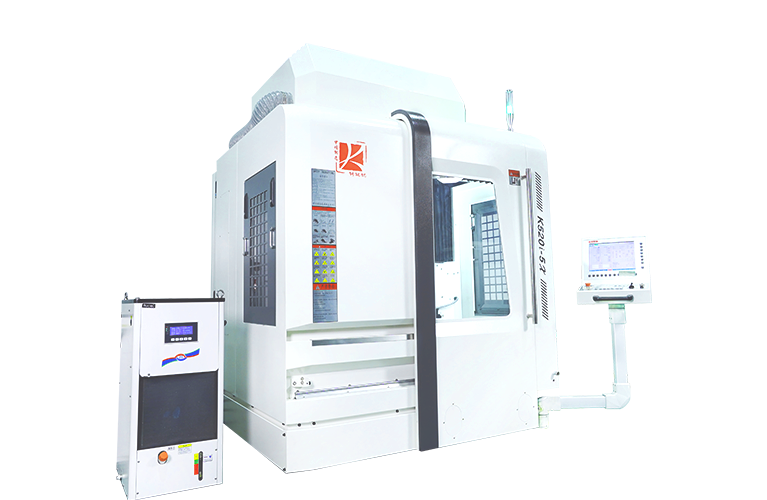

project | K520i-5X | |
Machine part standard specifications | ||
Range of work | X axis travel | 500mm |
Y axis travel | 200mm | |
Z axis travel | 200mm | |
Spindle nose to table surface | 92-292mm | |
Turntable | Disk size | 200mm |
Drive method | Motor direct drive | |
Maximum load-bearing capacity of the table | 30kg (uniform load-bearing) | |
Maximum speed | B axis; 200RPM C axis; 400RPM | |
B axis rotation angle | ±135° | |
B/C axis repeat positioning accuracy | ±2" | |
Spindle | Type | Built-in spindle |
Rotating speed | 30000RPM | |
Spindle end (nominal spindle number) | 1/10 taper HSK E40 | |
Spindle motor | 11KW | |
Maximum clamping tool diameter of spindle | 16mm | |
Feed rate | Fast forward speed X/Y/Z | 60/60/60m/min (out of the machine, the three axis is set to 18m/min) |
Cutting feed rate X/Y/Z | 1-30,000mm/min | |
Maximum acceleration X/Y/Z | 0.6g/0.7g/1.0g | |
Tool holder magazine | Tool holder type | HSK E40 |
Tool number of tool magazine | 32 tools | |
Max. tool diameter | 55mm (full knife) | |
Neighboring Knife | 115mm | |
Max. tool length | 180mm | |
Tool selection ways | Randomly nearby | |
Max. tool weight | 3kg/hand | |
Tool change time (tool to tool) | 1.55 seconds | |
Accuracy | Positioning precision | ≤0.003mm |
Repeating positioning precision | ≤0.002mm | |
Required power source | Air pressure source | 6.5Kgf/cm² |
power source | 3x380,10kVA | |
Machine size | Machine size | 3700 x 3290 x 2710mm |
Machine weight | 5500kg |
Workpiece material: aluminum 6063
Machining tool: D8
Spindle speed: 22000RPM
Finishing time: 18s
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R0.5
Spindle speed: 22000RPM
Finishing time: 2h10min
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R2
Spindle speed: 20000RPM
Finishing time: 4h20min
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R2
Spindle speed: 18000RPM
Finishing time: 6h
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R1 / R0.5
Spindle speed: 20000RPM
Finishing time: 6h15min
Processing equipment: K520i-5X
Workpiece material: aluminum 6063
Machining tool: R1
Spindle speed: 16000RPM
Finishing time: 30min
Processing equipment: K520i-5X
